100 pieces for Jack of Plate

Build an Elizabethan-style jack of plates for your next reenactment or SCA kit. Our 1.25-inch square armor plates give you the pieces to get started. They can also be the foundation for a LARP costume with a historical feel.

Jacks were worn by ordinary soldiers in 16th-century England and Scotland, with small plates sewn between layers of fabric. The Royal Armouries example from about 1580 shows how those plates became a wearable garment.

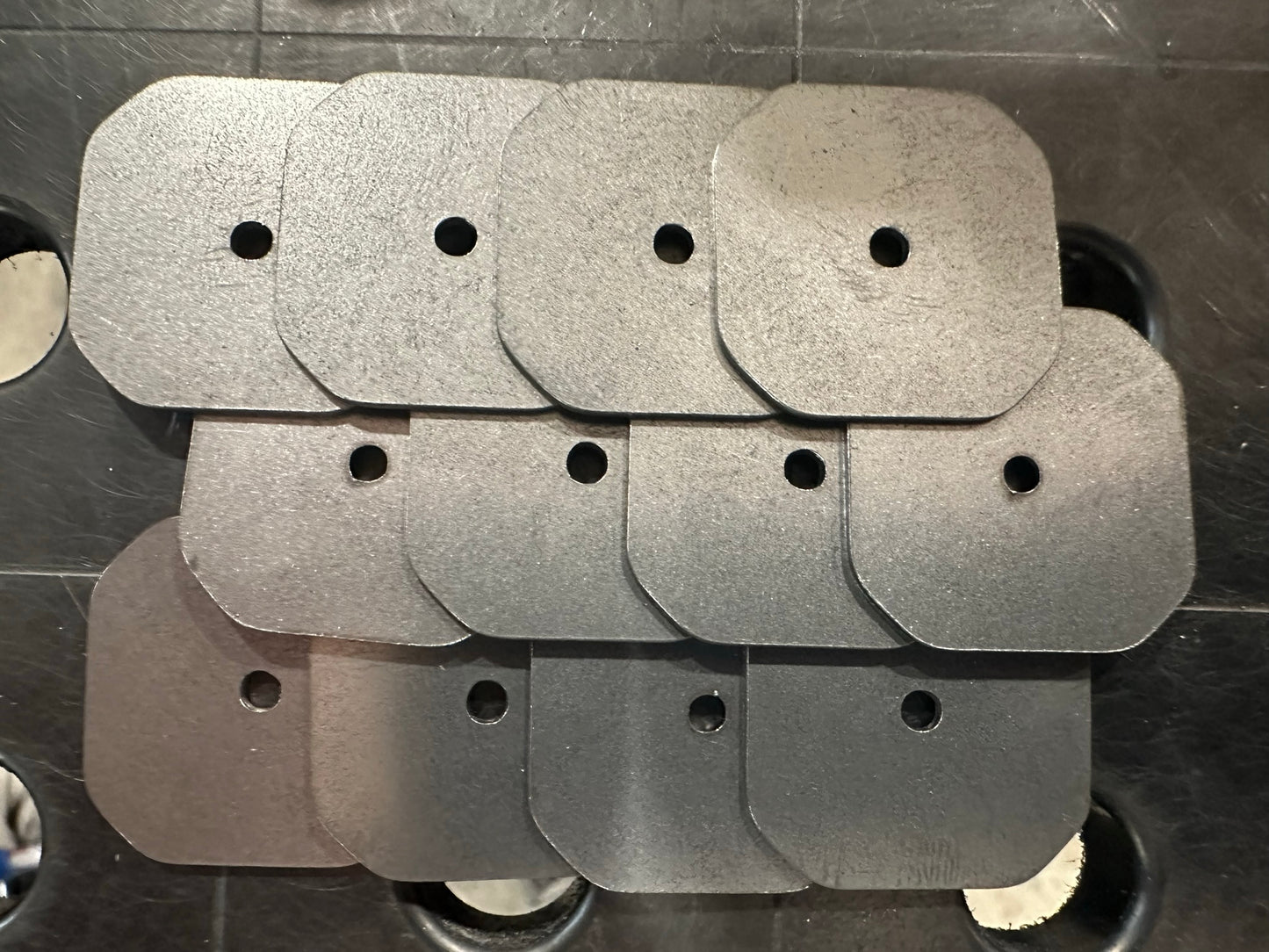

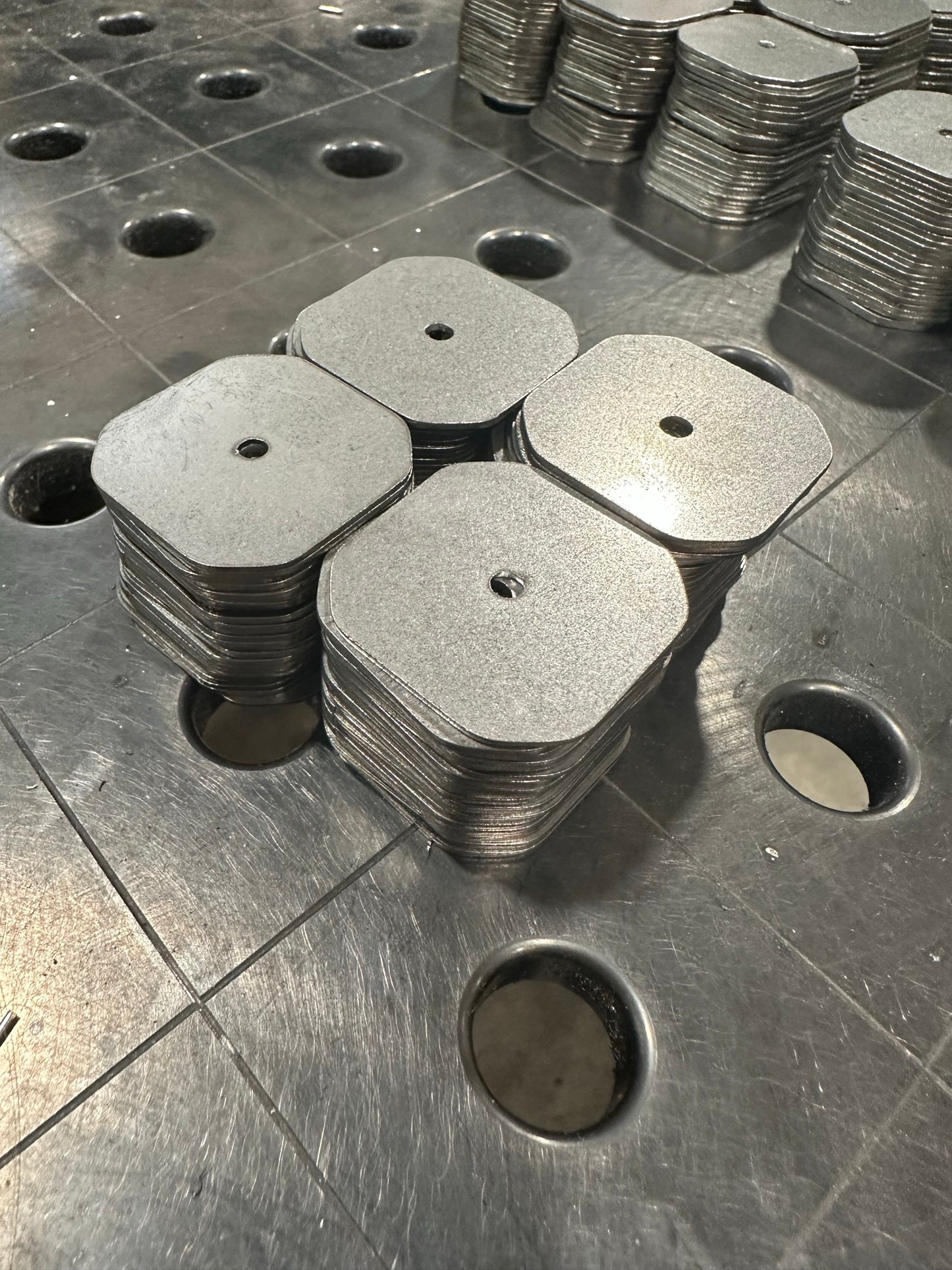

Quality in every plate

• Industrial laser precision. Every plate is cut on an industrial laser for consistent geometry and clean edges with micron level precision.
• Thorough tumble finishing. Plates are media tumbled to smooth cut edges, round corners, and create a clean matte finish.
• Final quality control. We check every plate by hand as we pack them making sure only the best make it to you.
• A little extra. We always pack a few extra pieces per 100 just to make sure. If for some reason a plate or two make it through QC, don't worry you got more than you ordered in your shipment.

What comes in a pack

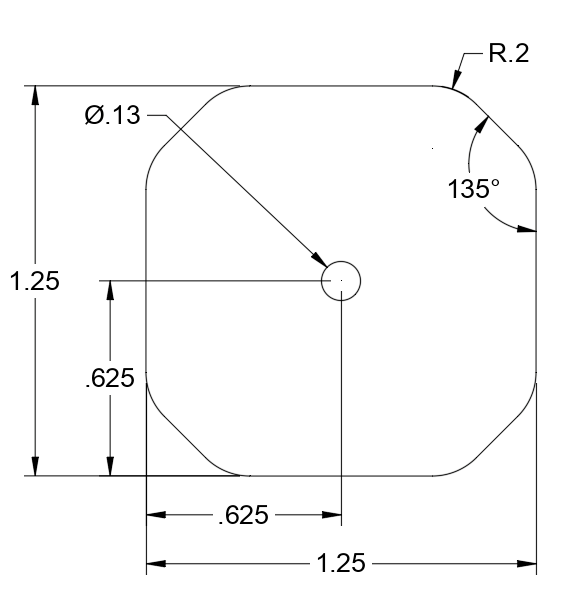

100 plates per pack. Each plate measures 1.25 inches square. See the drawing for the plate shape and attachment holes.

Pick your material

• 304 stainless steel: 1.2 mm / 0.048 inch.
• Heat-treated 410 stainless steel: 1.0 mm / 0.040 inch.
• 6061-T6 aluminum: 1.6 mm / 0.063 inch.

Aluminum is the lightest option. Our 410 stainless is hardened and tempered, with a tumble before heat treatment and another afterward. It can have a darker finish that varies from batch to batch.

For combat builds, choose your material and construction to suit your group's armor rules.

Weight per 100 plates

• 304 stainless: about 893 g / 1.97 lb.
• 410 stainless: about 711 g / 1.57 lb.
• Aluminum: about 424 g / 0.93 lb.

Weights may vary a little between batches.

Lay out your jack

Our sample hexagonal layout works out to about 289 plates per square foot. Use the layout drawing to plan your rows, then adjust the count for your spacing, overlap and sewing method.

An original jack of plates

See the original Royal Armouries reference.

Please allow up to two weeks for us to get your order out the door.
